מפרט טכני
| חברה | Zalman |
| דגם | ZM850-GV3 |
| WATT | 850W |
| Molex | 3 |
| Sata | 2 |
| VGA | 8 pin x1, 12VHPWR |
| ATX 8pin | 8 pin x1 |
| 12VHPWR | Yes |
| Fan | 120 x 120mm |
| 80+ Efficiency | Bronze |
| Picture | grand-images/ZM850-GV3.jpg |
| אחריות | 60 חודשים |
מידע נוסף

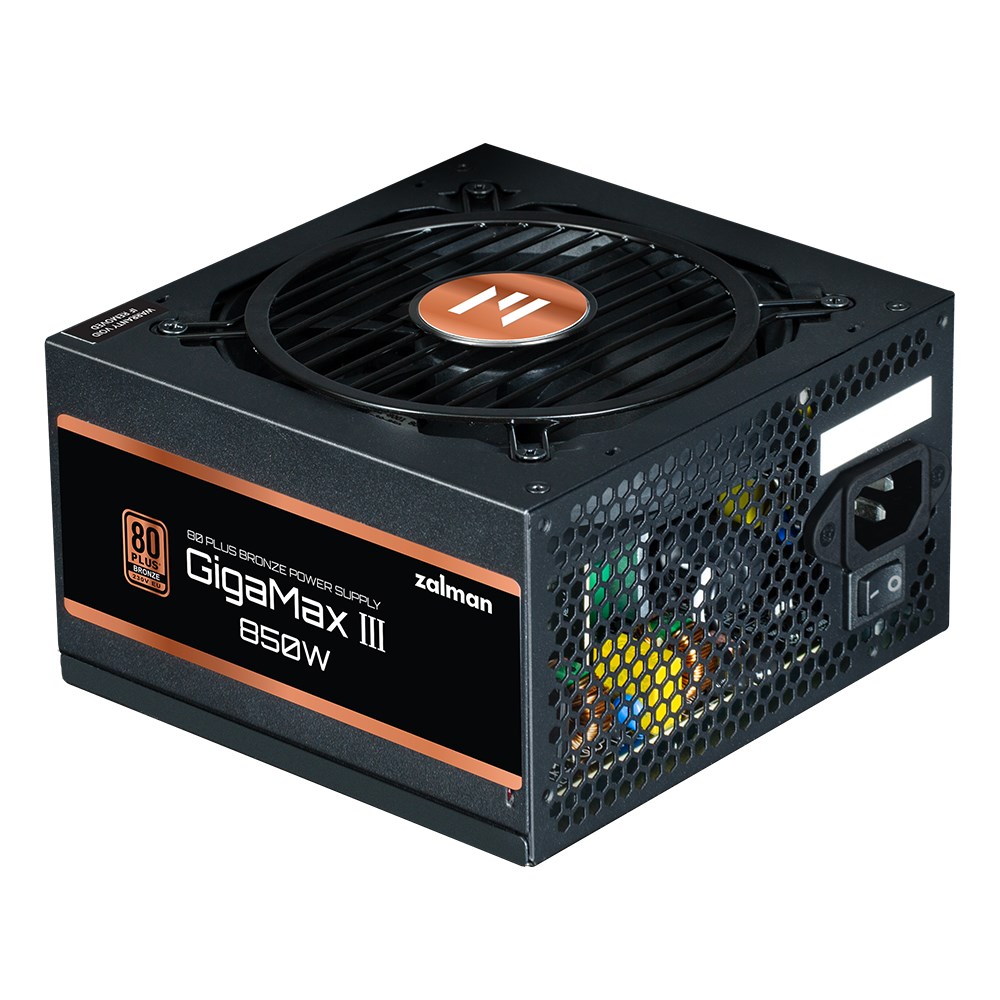

ZALMAN 850W ZM850-GV3 PCIe 5.1 80 PLUS BRONZE POWER SUPPLY
Country of origin: China
Type: Power Supply
Model: GigaMax III [850W]
Manufacturers code: [ZM850-GV3]
Power (nominal): 850W
Main power connector: 20 + 4 pin
Connectors for processor power (CPU): 8 pin x1
Connectors for graphics card power (PCI-E): 8 pin x1, 12VHPWR
Number of 15-pin SATA connectors: 2
Number of 4-pin Molex connectors: 3
Length of the main power cable: 600mm
Processor power cable length: 700mm
PCI-E Power cable length: 550mm
SATA Power cable length: 500mm
Molex Power cable length: 500mm
Line power 12 V: 850W
Line current +12 V: 12V1 70.83A
Line current +3.3 V: 20 A
Line current +5 V: 20 A
Standby source current (+5 V standby): 3 A
Line current -12 V: 0.3 A
Input voltage range of the network: 100-240 V 50/60Hz
Cooling system: Active
Fan dimensions: 120 x 120mm
Speed adjustment: Automatic
Form factor: ATX
Colour: black
Wire Colors: black
Length: 140mm
Width: 150mm
Height: 86mm
Weight: 1.8kg
Network cable included: לא
Equipment: documentation, cable set, cable ties
Features: Japanese capacitors
