מפרט טכני
| חברה | Zalman |
| דגם | ZM800-TXII |
| WATT | 800W |
| Molex | 4 |
| Sata | 8 |
| VGA | 6+2 pin x4 |
| ATX 8pin | 8 pin, 4+4 pin |
| 80+ Efficiency | Standard |
| Picture | grand-images/ZM800-TXII.jpg |
| אחריות | 36 חודשים |
מידע נוסף

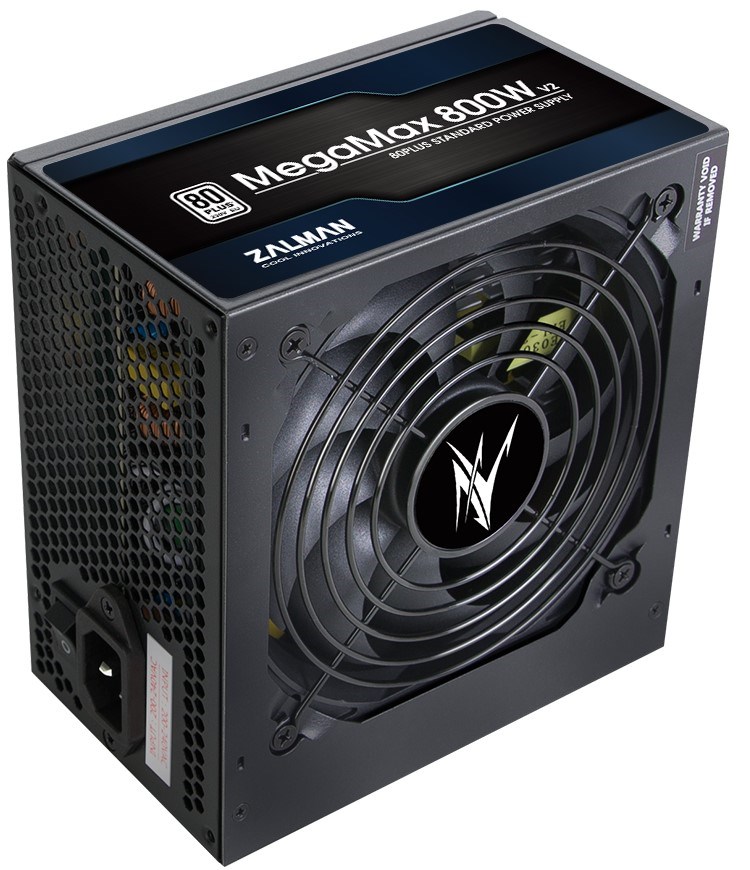

ZALMAN 800W MEGAMAX ZM800-TXII 80 PLUS POWER SUPPLY
Country of origin: China
Type: Power Supply
Model: ZALMAN MegaMax 800W
Manufacturers code: [ZM800-TXII]
Power (nominal): 800W
Main power connector: 20 + 4 pin
Connectors for processor power (CPU): 8 pin, 4+4 pin
Connectors for graphics card power (PCI-E): 6+2 pin x4
Number of 15-pin SATA connectors: 8
Number of 4-pin Molex connectors: 4
4 pin Floppy connector: כן
Length of the main power cable: 550mm
Processor power cable length: 730mm
PCI-E Power cable length: 490mm
SATA Power cable length: 450mm
Molex Power cable length: 470mm
Line power 12 V: 720W
Line current +12 V: 12V1 60A
Line current +3.3 V: 22 A
Line current +5 V: 22 A
Standby source current (+5 V standby): 3 A
Line current -12 V: 0.5 A
Input voltage range of the network: 200-240 V 50/60Hz
Cooling system: Active
Fan ?izes: 120 x 120mm
Speed adjustment: Automatic
Form factor: ATX
Colour: black
Wire braiding: No, protective braid
Wire Colors: black
Length: 140mm
Width: 150mm
Height: 86mm
Weight: 1.85kg
Network cable included: כן
Equipment: documentation, fixing kit, cable ties
