מפרט טכני
| חברה | Zalman |
| דגם | ZM600-LX3 |
| WATT | 600 W |
| Molex | 3 |
| Sata | 6 |
| VGA | 6+2 pin x2 |
| ATX 8pin | 4+4 pin |
| Fan | 120 x 120 mm |
| Picture | grand-images/ZM600-LX3.jpg |
| אחריות | 36 חודשים |
מידע נוסף

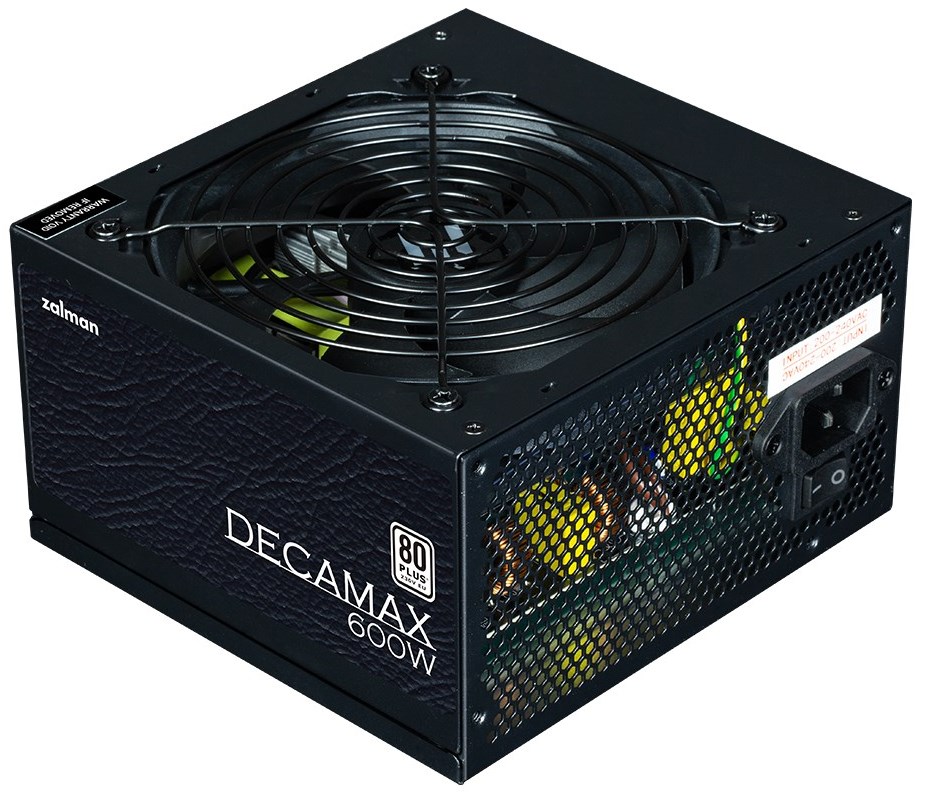

ZALMAN 600W ZM600-LX3 80 PLUS POWER SUPPLY
Type: block supply
Model: ZALMAN ZM600-LX3
Manufacturer code: ZM600-LX3
Power (nominal): 600 W
Certificate 80 PLUS: לא
Compliance with standards: ATX 12V 2.3
Protection technologies: OPP, OVP, UVP, SCP
Main power connector: 20 + 4 pin
Connectors for processor power (CPU): 4+4 pin
Connectors for graphics card power (PCI-E): 6+2 pin x2
Number of 15-pin SATA connectors: 6
Number of 4-pin Molex connectors: 3
Length of the main power cable: 500 mm
Processor power cable length: 600 mm
PCI-E Power cable length: 500 mm
SATA Power cable length: 450 mm
Molex Power cable length: 450 mm
Line power 12 V: 552 W
Line current +12 V: 12V1 46A
Line current +3.3 V: 20 A
Line current +5 V: 20 A
Standby source current (+5 V standby): 2.5 A
Line current -12 V: 0.3 A
Input voltage range of the network: 220-230 V 50/60 HZ
Cooling system: Active
Fan dimensions: 120 x 120 mm
Speed adjustment: Automatic
Form factor: ATX
Colour: black
Wire braiding: No, Protective braid
Wire Colors: standard
Length: 140 mm
Width: 150 mm
Height: 86 mm
Network cable included: כן
Equipment: documentation, fastener kit
