מפרט טכני
| חברה | Zalman |
| דגם | ZM400-XEII |
| WATT | 400W |
| Molex | 3 |
| Sata | 4 |
| VGA | 6+2 pin x2 |
| ATX 8pin | 4+4 pin |
| Picture | grand-images/ZM400-XEII.jpg |
| אחריות | 36 חודשים |
מידע נוסף

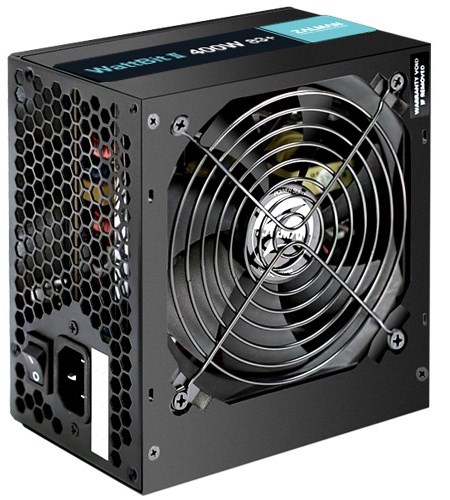

ZALMAN 400W ZM400-XEII POWER SUPPLY
Country of origin: China
Type: Power Supply
Model: ZALMAN Wattbit II 400W
Manufacturers code: [ZM400-XE II]
Power (nominal): 400W
Main power connector: 20 + 4 pin
Connectors for processor power (CPU): 4+4 pin
Connectors for graphics card power (PCI-E): 6+2 pin x2
Number of 15-pin SATA connectors: 4
Number of 4-pin Molex connectors: 3
Length of the main power cable: 500mm
Processor power cable length: 600mm
PCI-E Power cable length: 450mm
SATA Power cable length: 450mm
Molex Power cable length: 450mm
Line power 12 V: 360W
Line current +12 V: 12V1 30A
Line current +3.3 V: 16 A
Line current +5 V: 15 A
Standby source current (+5 V standby): 2 A
Line current -12 V: 0.3 A
Input voltage range of the network: 220-230 V 50/60Hz
Cooling system: Active
Fan ?izes: 120 x 120mm
Speed adjustment: Automatic
Form factor: ATX
Colour: black
Wire braiding: No, protective braid
Wire Colors: standard
Length: 140mm
Width: 150mm
Height: 86mm
Network cable included: כן
Equipment: documentation, fixing kit
